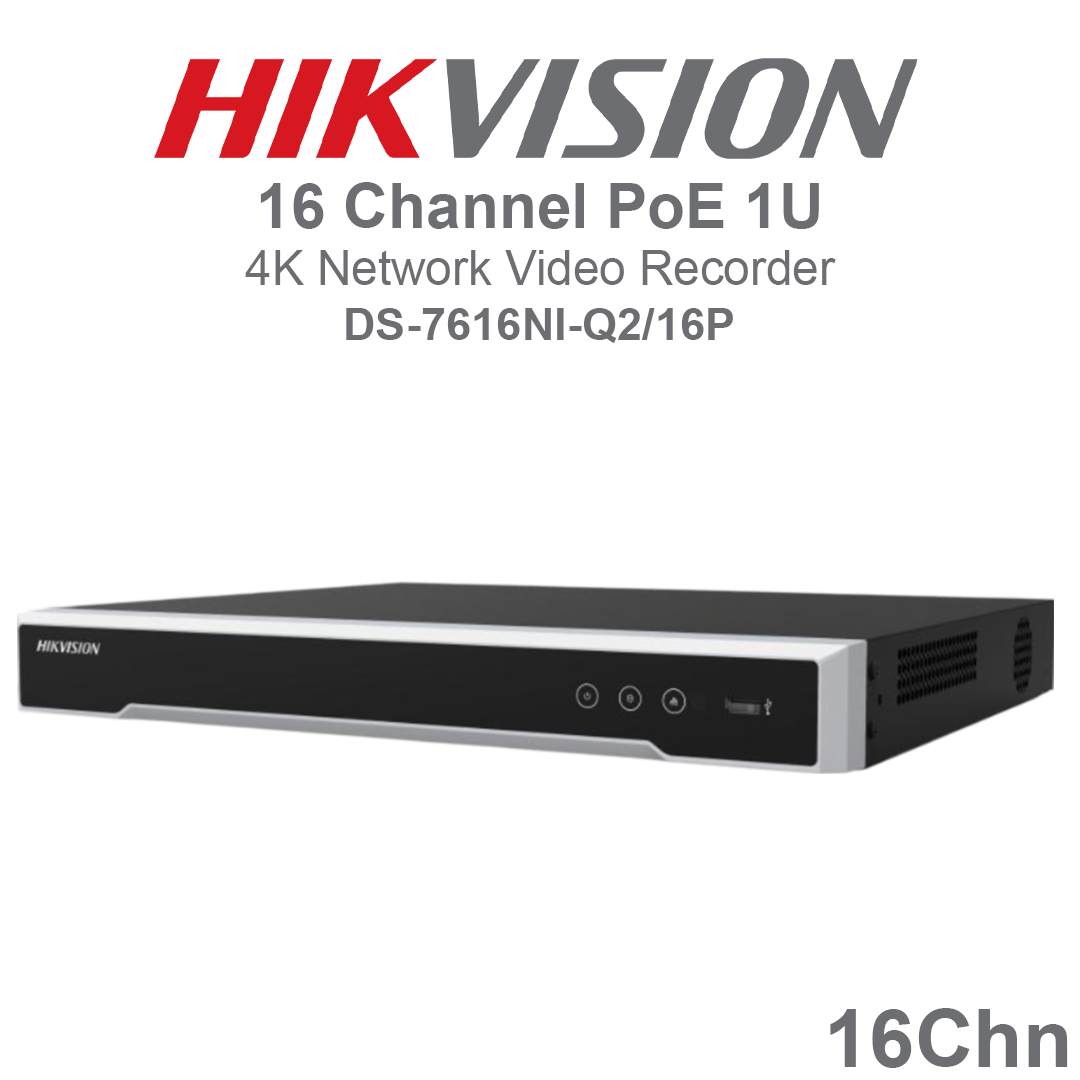

Hikvision 16 Channel 1U 4K PoE NVR

Model: DS-7616NI-Q2/16P

Up to 16-ch IP camera inputs

H.265+/H.265/H.264+/H.264 video formats

Up to 1-ch @ 8MP or 5-ch @ 1080P decoding capacity

Up to 160 Mbps incoming bandwidth

Motion Detection 2.0
Human/Vehicle Analysis: 4

Video and Audio
IP Video Input: 16-ch
HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video Output Mode: HDMI/VGA simultaneous output
Incoming Bandwidth: 160 Mbps
Outgoing Bandwidth: 80 Mbps
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding
Decoding Format: H.265+,H.265,H.264+,H.264
Decoding Capability: 1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Synchronous playback: 16-ch
Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF

Network
Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
Network Interface: 1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE
Interface: 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power: ≤ 150W
Standard: IEEE 802.3 af/at

RAID
RAID Type: No

Auxiliary Interface
SATA: 2 SATA interfaces
Capacity: Up to 8TB capacity for each disk
USB Interface: 2 × USB 2.0

General
Power Supply: 100-240V～, 50/60Hz, 3.2A MAX
Consumption: ≤ 15W
Working Temperature: -10 to +55º C (+14 to +131º F)
Working Humidity: 10 to 90 %
Chassis: 1U chassis
Dimension (W × D × H): 385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
Weight: ≤ 2.6 kg (5.7 lb)
