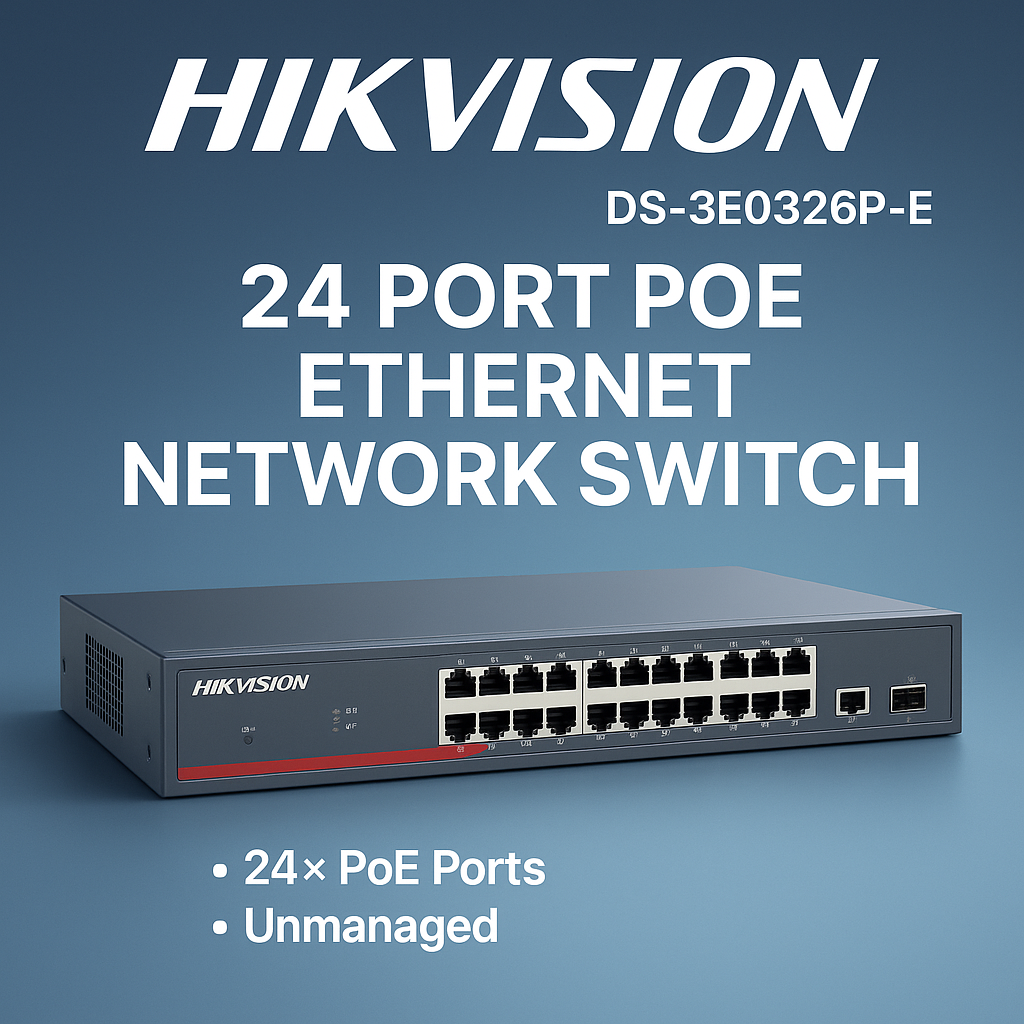

Hikvision 24 Port POE Ethernet Network Switch DS-3E0326P-E

24 Port Fast Ethernet Unmanaged POE Switch
Intelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.
Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
6KV Surge Protection to Improve Reliability in Harsh Environment. The built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.
Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

PoE Power Supply
PoE Standard
IEEE 802.3af, IEEE 802.3at

PoE Power Pin
Ports for long-distance transmission (17-24) support 8-core power supply, Ethernet cable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.

Ports for close-range transmission (1-8) support 4-core power supply, Ethernet cable 1/2/3/6 provide power supply.

PoE Port
Ports 1 to 24

Max. Port Power
30 W

PoE Power Pudget
230 W

Max. Power Consumption
250 W

Network Parameters
Port Number
24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45 port, and 1 × 1000 Mbps SFP fiber optical port

Port Type
RJ45 port, full duplex, MDI/MDI-X adaptive

Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Forwarding Mode
Store-and-forward switching

Working Mode
Standard mode (default); Extend mode

High Priority Ports
Ports 1 to 8

Ports For Long-Distance Transmission
Ports 17 to 24

MAC Address Table
4 K

Switching Capacity
8.8 Gbps

Packet Forwarding Rate
6.547 Mpps

Internal Cache
2.75 Mbits

General
Shell
Metal material

Gross Weight
3.33 kg (7.34 lb)

Net Weight
2.55 kg (5.6 lb)

Dimension (L × H × D)
335 mm × 44.5 mm × 226 mm (13.2” × 1.8” × 8.9”)

Operating Temperature
-10 °C to 55 °C (14 °F to 131 °F)

Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity
5% to 95% (no condensation)

Storage Humidity
5% to 95% (no condensation)

Power Supply
100 to 240 VAC, 50/60 Hz, Max. 4 A

Power Consumption In Idle
20 W
