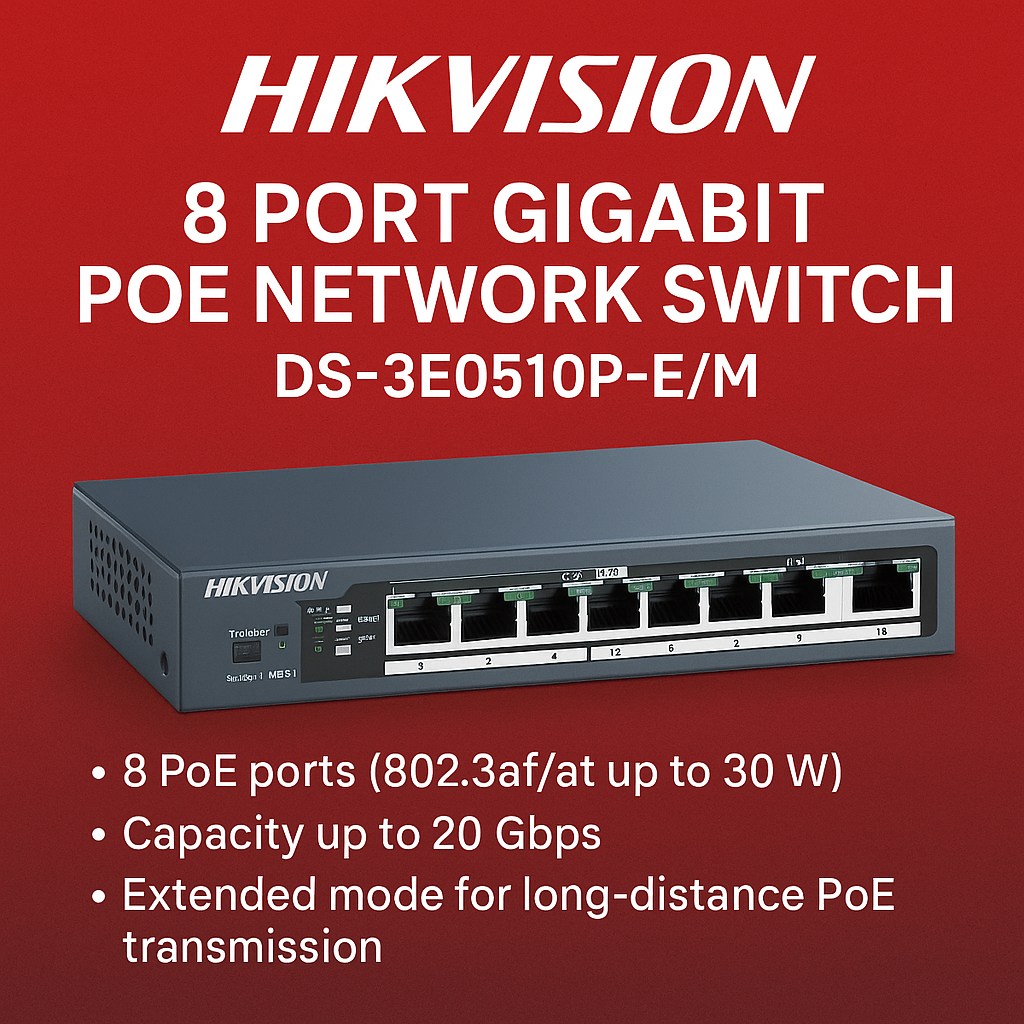

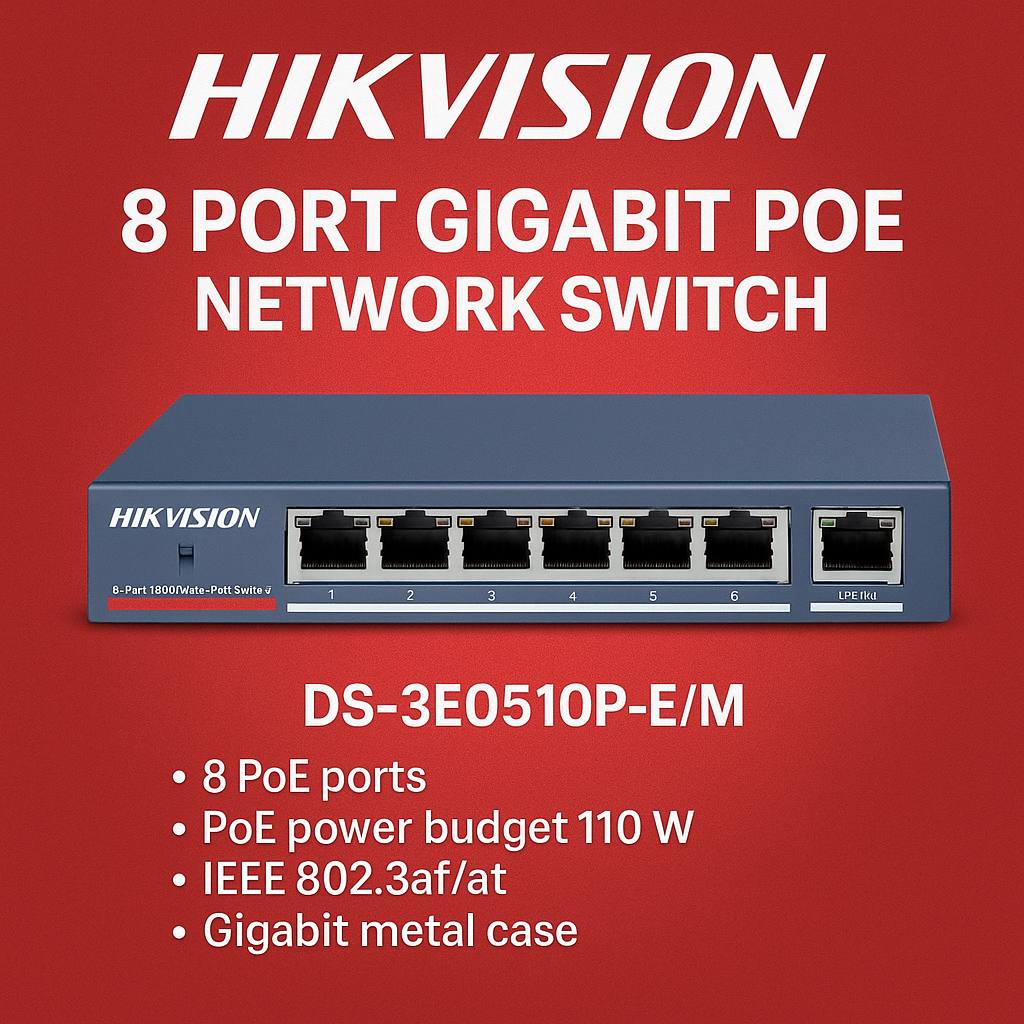

Hikvision 8 Port Gigabit POE Network Switch - DS-3E0510P-E/M

8 × Gigabit PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit SFP fiber optical port
IEEE 802.3at/af standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
6 KV surge protection for PoE ports
PoE power management
Gigabit network access
Wire-speed forwarding and non-blocking design
Store-and-forward switching
Solid high-strength metal shell
Reliable fan-free design

Network Parameters
Ports
8 × Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit fiber optical port

Port Type
RJ45 port, full duplex, MDI/MDI-X adaptive

Standard
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z

Forwarding Mode
Store-and-forward switching

MAC Address Table
4 K

Switching Capacity
20 Gbps

Packet Forwarding Rate
14.88 Mpps

Internal Cache
1.5 Mbits

PoE Power Supply
PoE Standard
IEEE 802.3af, IEEE 802.3at

PoE Power Pin
End-span: 1/2(-), 3/6(+)

PoE Port
Ports 1 to 8

Max. Port Power
30 W

PoE Power Budget
58 W

General
Dimensions (W × H × D)
217.6 mm × 27.8 mm × 108.55 mm (8.6” × 1.1” × 4.3”)

Shell
Metal material, fan-free design

Gross Weight
1.37 kg (3.01 lb)

Net Weight
0.64 kg (1.40 lb)

Operating Temperature
–10 °C to 55 °C (14 °F to 131 °F)

Operating Humidity
5% to 95% (no condensation)

Storage Temperature
–40 °C to 85 °C (–40 °F to 185 °F)

Storage Humidity
5% to 95% (no condensation)

Power Supply
48 VDC, 1.35 A

Power Consumption In Idle
7 W

Max. Power Consumption
65 W
