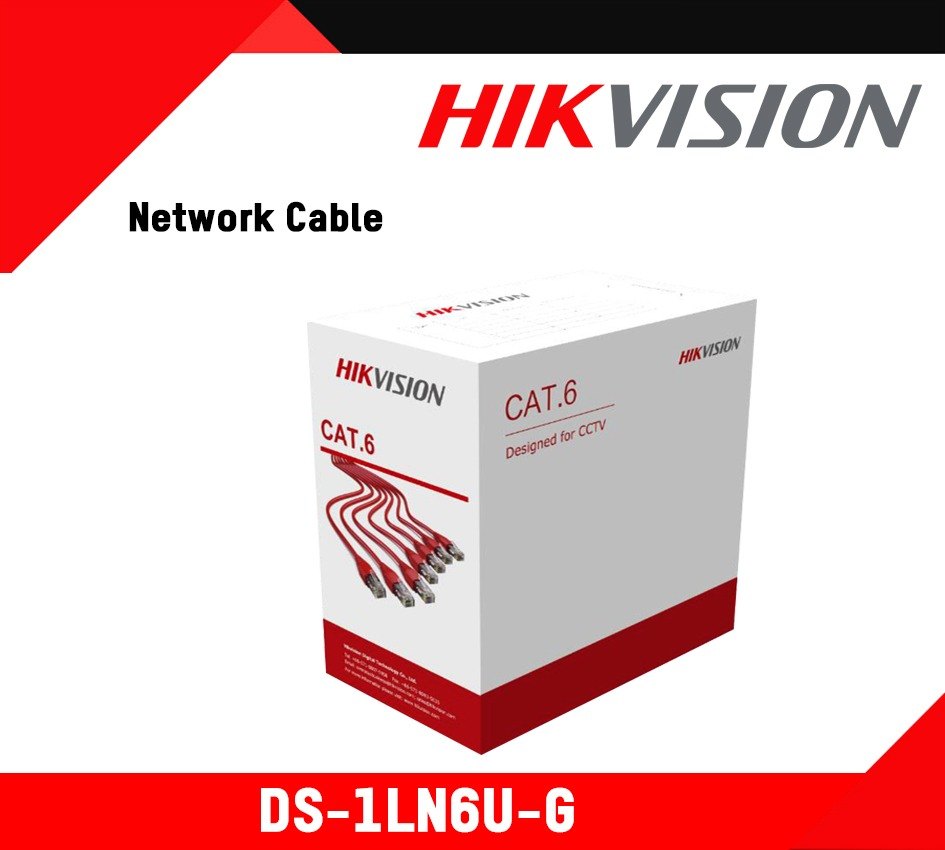

Hikvision CAT 6 Network Cable 305M Roll - DS-1LN6U-G

Full diameter 305 m CAT6 network cable
Core diameter: 0.55mm
Excellent transmission performance using solid copper
Quality verified by Fluke test
Guaranteed long PoE transmission distance
Great PVC flame resistance.

Category
Cat.6

Steath printing
HIKVISION 4PR 23AWG 75℃ U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS

Reference standard
ISO/IEC11801,ANSI/TIA-568-C.2,RoHS 2.0

Fire resistance
No

Conductor
Solid-Bare Copper (99.95%);0.55±0.005 mm，23 AWG

Insulation
HDPE;0.98±0.05 mm

Rip-cord
Yes

Separator
Yes

Sheath physical properties
Before aging
Tensile strength ≥ 13.5 Mpa;Elongation ≥ 150%

Aging period
100 ℃ × 24h × 10d

After aging
Tensile strength ≥ 12.5Mpa;Elongation ≥ 125%

Cold bend
-20 ± 2℃ × 4h，8 × cable O.D,no visible cracks

Electrical Characteristics(20℃)
1.0-250.0 MHz impedance
100 ± 15Ω @ ≤ 100MHz；100 ± 25Ω @ 100-250MHz

1.0-250.0 Mhz delay skew
≤ 45 ns/100 m

DC resistance
≤ 9.38 Ω/100 m

DC conductor resistance unbalance
≤ 5.0 %

Package dimension
400 mm (W) × 400 mm (H) × 240 mm (D)(15.75″ × 15.75″ × 9.45″)

Weight
12.3 ± 0.5kg

Cable length
(305 ±1.5) m

Ambient temperature
-20 ℃ to 75 ℃ (-4℉ to 167℉)

Operating voltage
60 V

Sheath
Thickness
0.5±0.10 mm

Material
PVC

Color
Grey

Diameter
6.00±0.30 mm
